- 83mm Stiles and 110mm Rails
- Door Height – Less 196mm
- Door Width – Less 142mm
Installation Instructions
Technical Manual

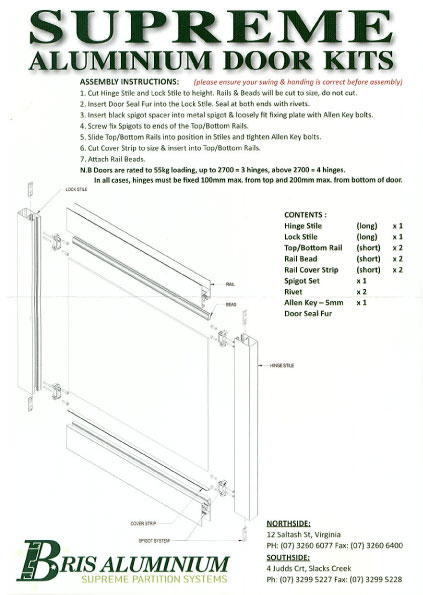

Door Kit Instructions
35mm Swing and Sliding Door (215 Series)
- 35mm Swing and Sliding Door
- 100mm Stiles & 100mm Rails
- Glazing: Height less 184mm, Width less 184mm
45mm Swing Door (225 Series) Narrow Stile
45mm Swing Door (225 Series) Wide Stile
- 131mm Stiles and 110mm Rails
- Door Height – Less 196mm
- Door Width – Less 238mm
45mm Sliding Door - (225 Series) Narrow Stile
- 83mm Stiles
- 87mm Shallow Top Rail
- 110mm Standard Bottom Rail
- Door Height – Less 173mm
- Door Width – Less 142mm
45mm Sliding Door (225 Series) Wide Stile
- 131mm Stiles
- 87mm Shallow Top Rail
- 110mm Standard Bottom Rail
- Door Height – Less 173mm
- Door Width – Less 238mm
