- 35mm Door Use DPS-76/20 Door Stop facing narrow side of frame
- 40mm Door Use DPS-76/40 Door Stop facing wide side of frame
- 45mm Door Use DPS-76/20 Door Stop facing wide side of frame
Frequently Asked Questions
When Will My Transport Arrive On Site?
We can organise the transport and provide you with the con note number to track the goods. It is your responsibility to be onsite when the goods arrive. If you want to organise the transport yourself, please let the sales representative know.
What's included in a Door Kit?
We include the hinge screws and frames screws with all our kits.
All door kits comes with stiles and stop heights oversize, and heads and head stops cut to suit width of doors including instructions.
What skirting do you have?
All our clear anodised skirting is on the shelf and are 3620mm long.
The black, grey and white infill is available in 50 and 100 meter rolls.
What locations do the hinges need to be?
In all cases, hinges must be fixed 100mm max from top and 200mm max from bottom of door.
Adjustable Door Frame for 35mm Door
Front
Back
Supreme And Econo Systems
Front
Back
What door stops should I use?
64 Supreme
- 35mm Door Use DPS-20 Door Stop facing narrow side of frame
- 40mm Door Use DPS-40 Door Stop facing narrow side of frame
- 45mm Door Use DPS-76/20 Door Stop facing wide side of frame
76 Supreme
64 Econo
- 35mm Door Use DPS-20 Door Stop facing narrow side of frame
- 40mm Door Use DPS-40 Door Stop facing narrow side of frame
- 45mm Door Use DPS-64/45 Door Stop facing wide side of frame
76 Econo
- 35mm Door Use DPS-76/20 Door Stop facing either side of frame
- 40mm Door Use DPS-92/40 Door Stop facing narrow side of frame
- 45mm Door Use DPS-64/45 Door Stop facing either side of frame
92 Supreme
- 35mm Door Use DPS-76/20 Door Stop facing narrow side of frame
- 40mm Door Use DPS-92/40 Door Stop facing narrow side of frame
- 45mm Door Use DPS-64/45 Door Stop facing narrow side of frame
How do you get scuff marks off aluminium?
Please use Aluminium Rubber to rub it out. You can buy one from us, using the code BA-1997.
What are the Adjustable Door Frame And Hole Sizes?
Door Size to Frame Size
Door Size = 2040 x 920 – (Disabled Code)
Frame Width
Architrave – 35mm
Door Width – 920mm
Clearance – 7mm
Total Frame Width – 997mm
Frame Height
Architrave – 35mm
Door Width – 2040mm
Clearance – 15mm
Total Frame Width – 2090mm
From Frame Size to Opening Size
- For single or double door subtract 37 from frame width = 997 – 37 = 960mm
- For the height subtract 15 from the frame height = 2090 – 15 = 2075mm
From Door Size to Opening Size
- For single or double door add 40mm to the door width = 920 + 40 = 960mm
- For the height add 35mm to the door height = 2040 + 35 = 2075mm
What are the Adjustable Glazing Frame Sizes?
To get the hole size for an adjustable glazing frame all you have to do is subtract 36 from the frame size.
For Example:
- 1270mm height frame size = 1234mm height hole size
- 1270mm width frame size = 1234mm width hole size
How do I measure for the Air Grills And Vision Panels?
For the Air Grills hole size, please add 5mm to each of the measurements of the grill size. So if the measurements for the grill is 600 X 600, the hole size would be 605 X 605
For Vision Panels, the size you give us is the actual cut out size. For example 600 X 600 Viewing Panel’s cut out size is 600 X 600
What sizes are the Cavity Sliders?
- Hole Size or Stud opening = Carcus size + door size – 7mm
- Carcus = 1000mm
- Door size = 1050mm
- Hole size = 2043mm
- Maximum weight of a door = 100KG

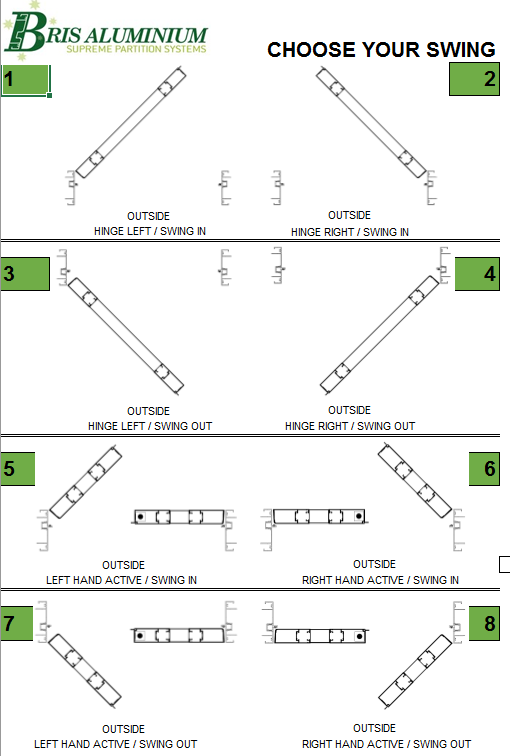

What are my door swing options?
What locks will work on my Aluminium Doors?
We don’t sell 40mm Aluminium Doors.
For the 35mm door we recommend the 23mm or 30mm back set. You can’t use the 60mm back set as the lock will hit the glass.
All 45mm Narrow style doors can only have a lock backset of 23mm. Please ask for 45mm Wide style for 23mm, 30mm and 60mm back set for locks.
What sizes to the Slimline come in?
GS-500 base and GS-501 Bead comes in straight lengths of 2750mm and 3750mm.

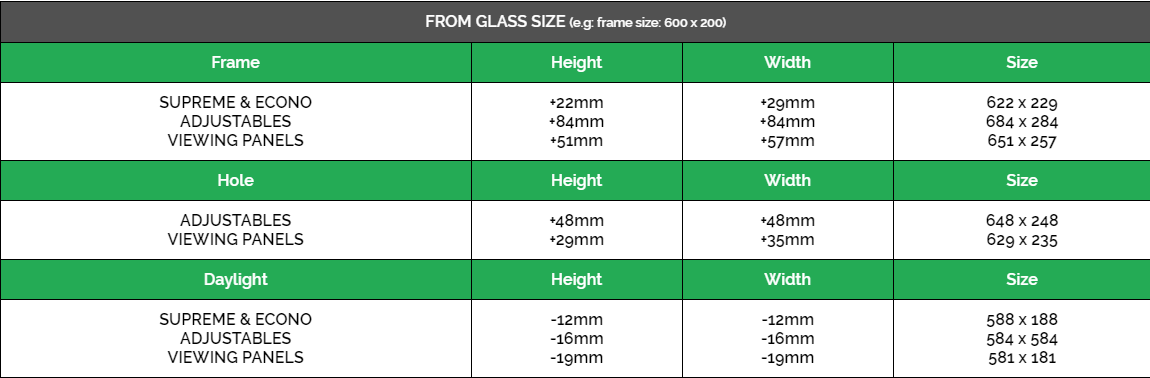

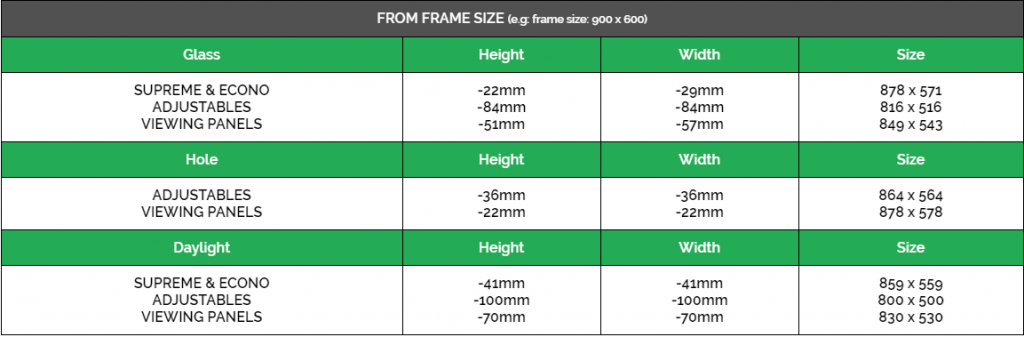

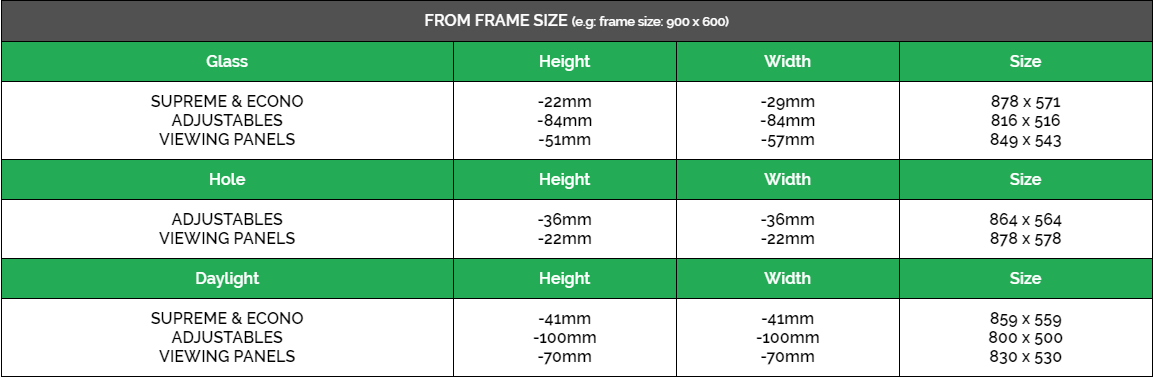

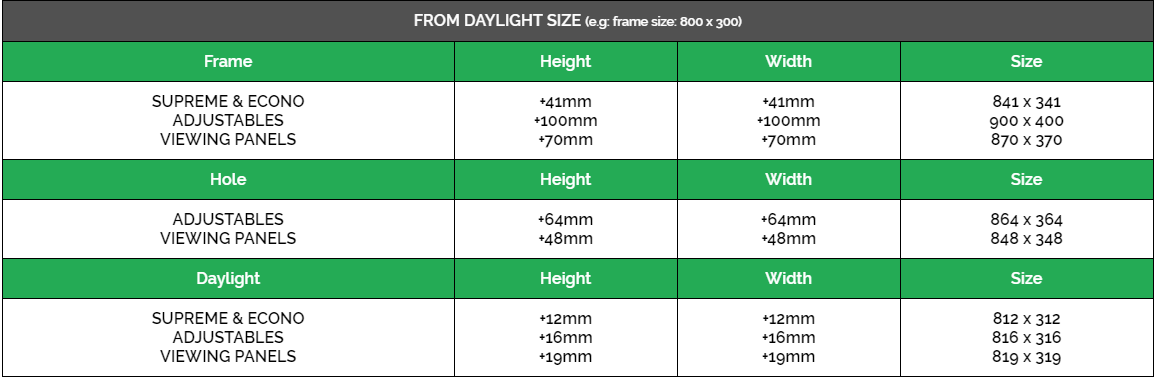

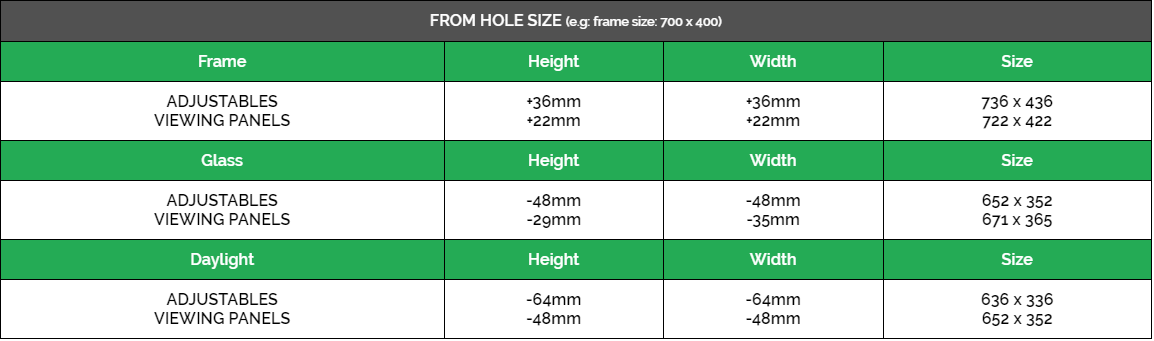

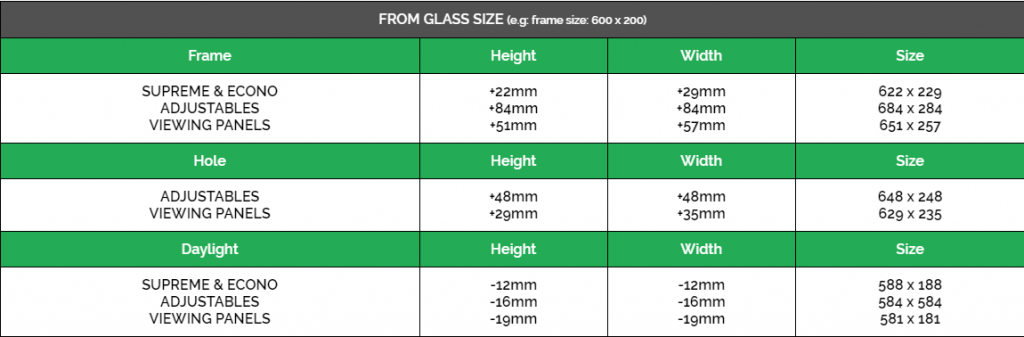

Do you have Glazing Frame Formulas?
What is your Refunds And Returns Policy?
- Company policy states no credits will be issued once the delivery docket has been signed.
- There is a 15% restocking fee for goods to be returned when a genuine mistake occurs.
- This will be a management decision.
- This is only for straight lengths and not fabricated cut lengths.
- Returned goods must be in saleable condition for goods to be returned.
